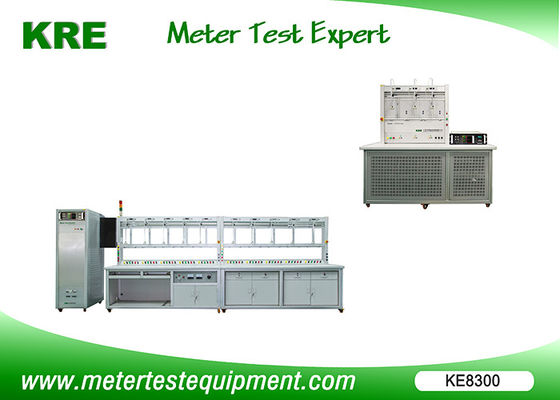

3 Phase Energy Meter Test Bench , High Accuracy 0.02 Meter Test Equipment

3 Phase Energy Meter Test Bench ,  High Accuracy 0.02 Meter Test Equipment
3 Phase Energy Meter Test Bench ,  High Accuracy 0.02 Meter Test Equipment

Large Image :  3 Phase Energy Meter Test Bench , High Accuracy 0.02 Meter Test Equipment

Product Details:
Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE8300
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Phase: Three Frequency: 45 - 65Hz
Usage: Energy Meter Calibration Current Range: 1mA - 120A
Warranty: 12 Months Accuracy: 0.02
High Light:

electric meter testing equipment

,

calibration test bench

,

High Accuracy Meter Test Bench

Three Phase Meter Test bench high accuracy 0.02 energy meter calibrate device



KE8300 three phase meter test bench



Accuracy : 0.02 , Used for the test of standard meter and mounted meter with a accuracy class below 0.1, Number of meter position : 3-12



Features:

  • High accuracy: 0.02%
  • Integrated / separated aluminum alloy structure, light and reliable, flexible choices
  • Meter positions can be chosen from 3-12
  • Auto protection of short circuit of voltage, open circuit of current, and overload.
  • Test of neutral current (optional)
  • Full automatic, semi automatic and manual operation available
  • Supporting bar code input, which increase the efficiency of input
  • Simultaneous test of the meters with same specification, different constants and different classes.
  • Forward and reverse active energy/ Forward and reverse reactive energy error test
  • Creeping and starting test
  • Standard deviation, 24 hour variation test
  • Timing error test
  • Influencing quantity test of voltage, frequency, harmonic
  • Calibration and verification of constant
  • Register indicating value, register combination error test
  • Powerful computer management system, easy and user-friendly
  • Perfect database management makes the storage, searching, and viewing of the data possible, and the data can be converted and exported in other forms



Main Specification:







KE8300

Number of meter position

12

Accuracy

±0.02%

Voltage output

Output range (P-N)

3 x (24V - 300V)

Output power of voltage

3 x 400VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Current output

Output range

3 x (1mA - 120A)

Output power of current

3 x 600VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Phase output

Output range

0 -- 360°

Resolution

± 0.01°

Frequency

Output range

45Hz - 65Hz

Resolution

± 0.01Hz

Operation condition

Power supply

220V±10%,50/60Hz±2Hz

Temperature

-10°C -- +40°C

Humidity

35% -- 85%RH







Production area
