Class 0.2 Portable Energy Meter , Field Electric Meter Calibration Equipment

Class 0.2 Portable Energy Meter , Field Electric Meter Calibration Equipment
Class 0.2 Portable Energy Meter , Field Electric Meter Calibration Equipment

Large Image :  Class 0.2 Portable Energy Meter , Field Electric Meter Calibration Equipment

Product Details:
Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE7302
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Product Name: Portable Meter Tester Voltage Range: 3 X (10V - 480V)
Harmonic Measurement: 2nd- 51st Accuracy: 0.2%
Display: 4.7 Inch Color LCD Material: Plastic & Rubber
High Light:

portable reference standard meter

,

portable energy meter test equipment

,

Class 0.2 Meter Calibration Equipment


KE7302 Three Phase Portable Meter Tester

Accuracy : 0.2, Test method: clamp CT and terminal input. KE7302 is used to calibrate three phase, single phase, active or reactive energy meter, and also it can be used as voltage, current and power meter to measure AC parameter of three phase power grid.

Advantages:

  1. Measure all kinds of meter, include single phase (1P2W) meter, three phase three wire meter (3P3W), three phase four wire meter (3P4W) etc
  2. Measure the current with clamp CT and terminal two mode.
  3. Measure Vrms, Irms, phase angle, active power, reactive power, apparent power of three phase or single phase
  4. Measure total active power and total reactive power of three phase;
  5. Measure phase angle
  6. Measure frequency of power grid
  7. Display vector diagram
  8. Display waveform of voltage and current
  9. Analyze and display 2nd – 51st harmonic of voltage and current at real time
  10. Energy accumulating test (Dial test)
  11. Auto-check external wiring correct or not
  12. Test ratio of current transformer in low voltage circuit
  13. Wiring emulation, can simulate all kind of wirings on site without input voltage and current
  14. Realtime clock, accurate record testing time
  15. Store, browse and transfer measured data
  16. Real-time measured data by PC, and download calibration parameter
  17. Two kinds of power supply way: external AC power and voltage test lead power


Technical parameters:


  KE7302
Voltage measurement
Voltage range 3 x (0V – 480V)
Accuracy ±0.1%
Harmonics 2nd- 51st
Current measurement
Current range Terminal input 0.1A – 10A
Clamp input 5A, 20A, 100A, 500A, 1000A, 2000A, 3000A
Accuracy Terminal input ±0.2%
Clamp input ±0.2%(5A), ±0.5% (others)
Harmonics 2nd- 51st
Power measurement
Active power Terminal input ±0.2%
Clamp input ±0.2%(5A), ±0.5% (others)
Reactive power Terminal input ±0.2%
Clamp input ±0.2%(5A), ±0.5%(others)
Energy measurement
Active energy Terminal input ±0.2%
Clamp input ±0.2%(5A), ±0.5%(others)
Reactive energy Terminal input ±0.2%
Clamp input ±0.2%(5A), ±0.5%(others)
Phase measurement
Phase range 0 -- 360°
Accuracy ±0.1°
Frequency measurement
Frequency range 45Hz – 65Hz
Accuracy ±0.05Hz
Pulse output
Low frequency output(CL) 3600imp / kWh
Ppulse input
Input channel 1
Input frequency Max. 100Hz
Others
Power supply

Build-in rechargeable battery,

external power supply,

powered from the tested terminal

Dimensions 214mm×150mm×50mm
Weight 1.3kg

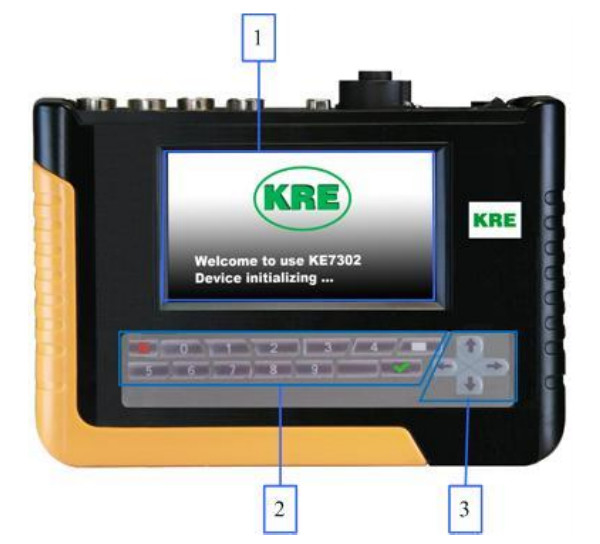

 Front panel

Class 0.2 Portable Energy Meter , Field Electric Meter Calibration Equipment 0


1 — LCD display
2 —Number key
3 —Function key

On the front panel, there is a LCD screen and 18 keys. Keys are consist of number key and function key. All the operation can be done via these keys.

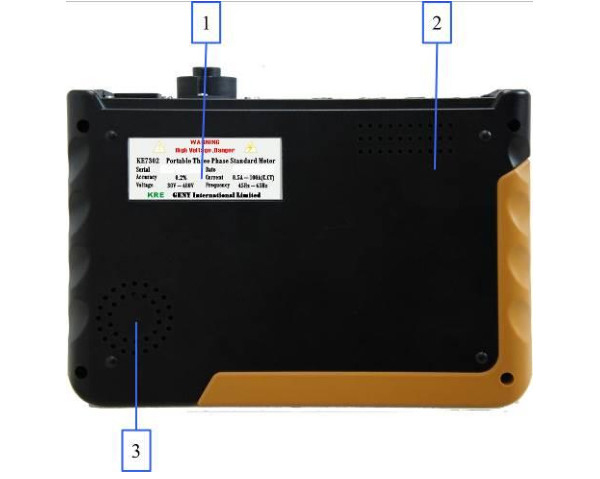

Back panel

Class 0.2 Portable Energy Meter , Field Electric Meter Calibration Equipment 1

1 —Nameplate
2 —Air inlet
3 —Air outlet
