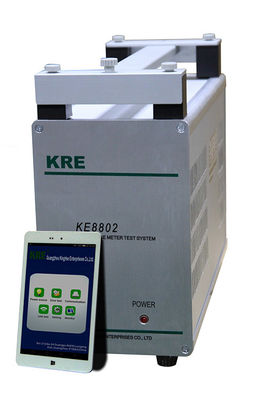

KE8802 0.1 Class Portable Meter Test Equipment

KE8802 is a complete single phase energy meter test system that combines power source and standard meter. Therefore, it can output single phase current or voltage signal as power source does, or calibrate the error of single phase energy meter. It is mainly designed for laboratory or outdoor test of single phase, active or reactive energy meter.

Product Description:

1. High accuracy and stability
2. Automatic range shift of current and voltage output
3. Standard meter and source are integrated, it could be used as portable test system
4. Wide output range, the voltage output could be up to 265V, and the max current output could be 120A
5. 2^nd-21^st harmonic could be generated and the amplitude and the phase could be freely set
6. Perfect protective alarming function, auto protection of short circuit of voltage, open circuit of current,and overload
7. Full automatic or manual operation
8. Two pulse input channel could test 2 single phase meters simultaneously
9. Communicate with the computer through LAN port and can be operated on computer.

Technical data:

Power supply: 220V+10%, 50Hz/60Hz
Maximum power consumption: 250VA (for max current and voltage output)

Voltage output: 1x 30V (AC) – 1 x 265V (AC);
Resolution: 5 mV

Current output: 0.001A (AC) – 120A (AC)
Resolution: 0.05 mA

Phase range: 0-360°
Resolution: 0.1°

Frequency output: 45Hz – 65Hz
Resolution: 0.01Hz

Waveform distortion (sine wave output):

voltage: Better than ± 0.2% (linear resistance load)
current: Better than ± 0.2% (linear resistance load)

Stability of power source (sine wave output): Better than ± 0.01% (50 – 265V)

Output capacity
Voltage source: 100VA
Current source: 60VA / 150VA

Working environment
Temperature: -10°C -- +40°C
Relative humidity: 35% -- 85%RH
Dimensions: 230mm x 155mm x 312mm (without handle)

                    275mm x 155mm x 312mm (with handle)
