Product Details:
Payment & Shipping Terms:
|
| Product Name: | Power Source | Phase: | Single |
|---|---|---|---|
| Frequency: | 45Hz - Hz | Stability: | Better Than ± 0.02% / 150s |
| Voltage Output: | 24 V - 300 V | Current Output: | 1mA – 120A（or Customized, Max. 230A） |
| High Light: | laboratory power source,high output power supply,1000VA Output High Power Source |
||

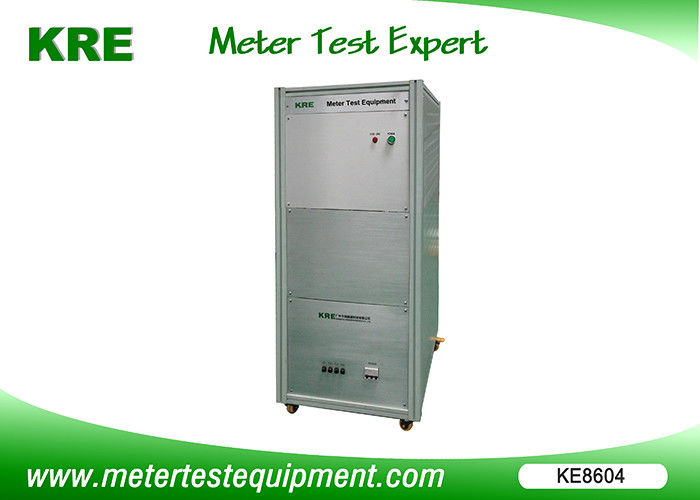

High Stability Single Phase Power Source with high output power of 1000VA
KE8604 is equipped with advanced digital technique, computer technology and modular design to meet the various demands of customers; it can output voltage, current or harmonic signal very steadily.
Features:
Parameters:
|
KE8604 |
|
|
Current output |
|
|
Output range (P-N) |
24V - 300V |
|
Output power of current |
1500VA |
|
Resolution |
≤ ± 0.01% |
|
Stability |
≤ ± 0.02% / 150s |
|
Load regulation rate |
≤ ± 0.01% |
|
Distortion factor |
≤ ± 0.3% (linear resistance load) |
|
Harmonics output |
2nd -21st free programmable |
|
Voltage output |
|
|
Output range |
1mA – 120A (or customized, Max. 230A) |
|
Output power of voltage |
1000VA |
|
Resolution |
≤ ± 0.01% |
|
Stability |
≤ ± 0.02% / 150s |
|
Load regulation rate |
≤ ± 0.01% |
|
Distortion factor |
≤ ± 0.3% (linear resistance load) |
|
Harmonics output |
2nd -21st free programmable |
|
Frequency |
|
|
Output range |
0 -- 360°45Hz - 65Hz |
|
Resolution |
± 0.01Hz |
|
Phase output |
|
|
Output range |
0 -- 360° |
|
Resolution |
± 0.01° |
|
Operation condition |
|
|
Power supply |
220V±10%,50/60Hz±2Hz |
|
Temperature |
-10°C -- +40°C |
|
Humidity |
35% -- 85%RH |
