300V Three Phase Meter Test Bench Auto Overload Protection Accuracy 0.05

300V Three Phase Meter Test Bench Auto Overload Protection Accuracy 0.05
300V Three Phase Meter Test Bench Auto Overload Protection Accuracy 0.05

Large Image :  300V Three Phase Meter Test Bench Auto Overload Protection Accuracy 0.05

Product Details:

Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE8301

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Phase: Three Frequency: 45 - 65Hz
Usage: Energy Meter Calibration Current Range: 1mA - 120A
Warranty: 12 Months Accuracy: 0.05
Structure Type: Separated Type Meter Position: 24
Voltage Range: 24V - 300V
High Light:

three phase energy meter test bench

,

electric meter testing equipment

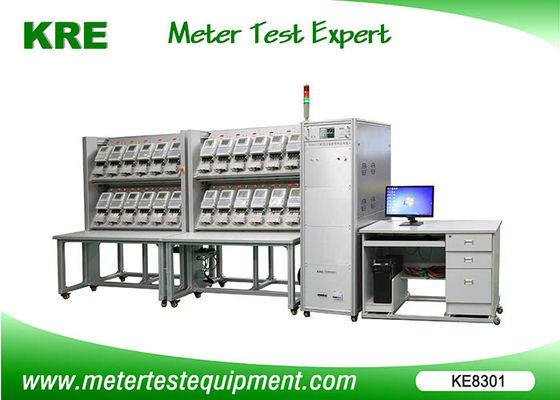

KE8301  Three Phase Meter Test Bench



Accuracy : 0.05 , Used for the test of three phase CT/PT meter with a accuracy class below 0.2, Number of meter position : 3-48





Features:

  1. Meter positions can be chosen from 3 - 48
  2. Integrated / separated aluminum alloy structure, light and reliable, flexible choices
  3. Auto protection of short circuit of voltage, open circuit of current, and overload.
  4. Test of neutral current (optional)
  5. Auto mark locking increases the efficiency of test
  6. Full automatic, semi automatic and manual operation available
  7. Supporting barcode input, which increase the efficiency of input
  8. Simultaneous test of the meters with same specification, different constants and different classes.
  9. Adopt multi-serial port system, realizing the parallel communication of computer and the tested meters( optional)
  10. Test of tilt impact (optional)
  11. Forward and reverse active energy / forward and reverse reactive energy error test
  12. Creeping and starting test
  13. Standard deviation, 24 hour variation test
  14. Timing error test
  15. Influencing quantity test of voltage, frequency, harmonic
  16. Calibration and verification of constant
  17. Register indicating value, register combination error test
  18. Powerful computer management system, easy and user-friendly
  19. Perfect database management makes the storage, searching, and viewing of the data possible, and the data can be converted and exported in other forms





Main Specification:



  KE8301-6 KE8301-12 KE8301-24 KE8301-48
Number of meter position 6 12 24 48
Accuracy ± 0.05%
Voltage output
Output range (P-N) 3×(24V – 300V)
Output power of voltage 3×100VA 3×250VA 3×500VA 3×1000VA
Resolution Better than ± 0.01%
Stability Better than ± 0.02% / 150s
Load regulation rate Better than ± 0.01%
Distortion factor Better than ± 0.3% (linear resistance load)
Harmonics output 2nd -21st free programmable
Current output
Output range 1mA – 120A (or customized,Max. 230A) 3×(1mA – 120A)
Output power of current 3×150VA 3×350VA 3×750VA 3×1500VA
Resolution Better than ± 0.01%
Stability Better than ± 0.02% / 150s
Load regulation rate Better than ± 0.01%
Distortion factor Better than ± 0.3% (linear resistance load)
Harmonics output 2nd -21st free programmable
Phase output
Output range 0 -- 360°
Resolution ± 0.01°
Frequency output
Output range 45Hz – 65Hz
Resolution ± 0.01Hz
Operation conditions
Power supply 3×220/380V±10% ,50/60Hz±2Hz
Temperature -10°C -- +40°C
Humidity 35% -- 85%RH







Factory area
