High Precision Portable Meter Tester Three Phase With 120A Clamp CT Class0.05 480V

High Precision Portable Meter Tester Three Phase With 120A Clamp CT Class0.05 480V
High Precision Portable Meter Tester Three Phase With 120A Clamp CT Class0.05 480V

Large Image :  High Precision Portable Meter Tester Three Phase With 120A Clamp CT Class0.05 480V

Product Details:

Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE7308

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Product Name: Portable Meter Tester Current Input: Terminal & Clamp CT Input
Voltage Range: 3 X (10V - 480V) Phase: Three
Accuracy: 0.05% Dimensions: 323mm×275mm×135mm
High Light:

portable test equipment

,

portable reference standard meter

High Precision Portable Meter Tester Three Phase With 120A Clamp CT Class0.05 480V

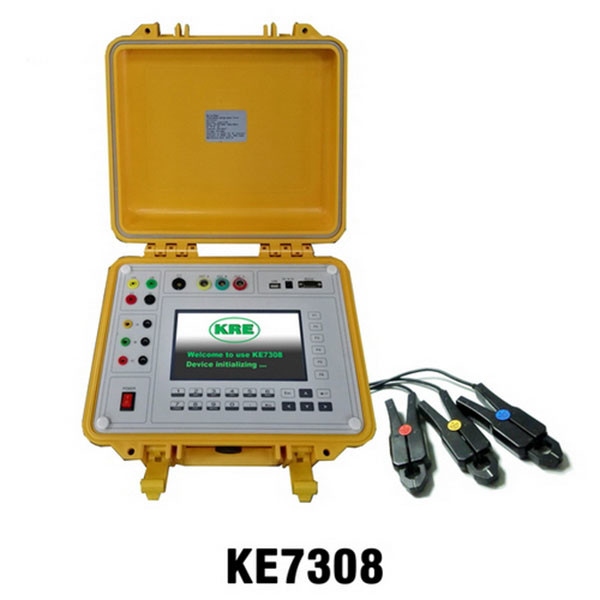

KE7308 Portable Three Phase Meter Tester

Accuracy : 0.05, Test method: clamp CT and 20A terminal input. It adopts compact engineering  case design, which is convenient for on-site test. In addition, it is able to calibrate the error of three phase energy meters and field electrical parameters of power grid. With a IP67 protection level, it can be used in many harsh condition.



Descriptions:

  1. Wide current range (direct connection): 0.05 A to 20A, the highest accuracy of each test point is 0.05%
  2. Calibrate the error of all electricity energy meters, checking the constant of the energy meter
  3. Simultaneous checking of the primary meter and the secondary meter in the same loop, or simultaneously checking of the active power meter and reactive power meter in the same loop
  4. 7” color LCD display, All the parameters of each operation function can be displayed within one page
  5. Two operation modes: touch screen and keyboard. Easy and reliable operation..
  6. Measure voltage, current,frequency, power, power factor and phase angle
  7. Simultaneous measure and display waveforms of three phase voltage and current
  8. Measure ratio of CT.
  9. Allocate clamp of 20A, 100A, 200A, 500A,1000A to directly measure the comprehensive error
  10. Measure the 2nd - 51st harmonics of current and voltage
  11. Display vector diagram, judge the wiring right or wrong automatically
  12. Industrial grade engineering plastic suit case, which has a safety protection level of up to IP67.
  13. Read the information of energy meter with barcode scanner (optional)
  14. Battery, test lead power or external power for choices
  15. Communicate with PC, download calibration data through USB flash disk, RS-232 port
  16. Firmware can be upgraded through removed disk by users themselves
  17. Save and browse the testing data




Main specifications:


  KE7308
Voltage measurement
Voltage range 3 x (10V – 480V)
Accuracy ±0.05%
Harmonics 2nd- 51st
Current measurement
Current range Terminal input 0.05A – 20A
Clamp input 5A, 20A, 100A, 500A, 1000A, 1500A
Accuracy Terminal input ±0.05%
Clamp input ±0.2%(5A), ±0.5% (others)
Harmonics 2nd- 51st
Accuracy of power measurement
Active power Terminal input ±0.05%
Clamp input ±0.2%(5A), ±0.5% (others)
Reactive power Terminal input ±0.05%
Clamp input ±0.2%(5A), ±0.5%(others)
Accuracy of energy measurement
Active energy Terminal input ±0.05%
Clamp input ±0.2%(5A), ±0.5%(others)
Reactive energy Terminal input ±0.05%
Clamp input ±0.2%(5A), ±0.5%(others)
Phase measurement
Phase range 0 -- 360°
Accuracy ±0.1°
Frequency measurement
Frequency range 45Hz – 65Hz
Accuracy ±0.05Hz
Pulse output
Low frequency output(CL) 36000 imp / kWh
Ppulse input
Input channel 2
Input frequency Max. 100Hz
Others
Power supply

Build-in rechargeable battery,

external power supply,

power through the tested terminal



Dimensions

323mm×275mm×135mm

Weight 3.5kg
