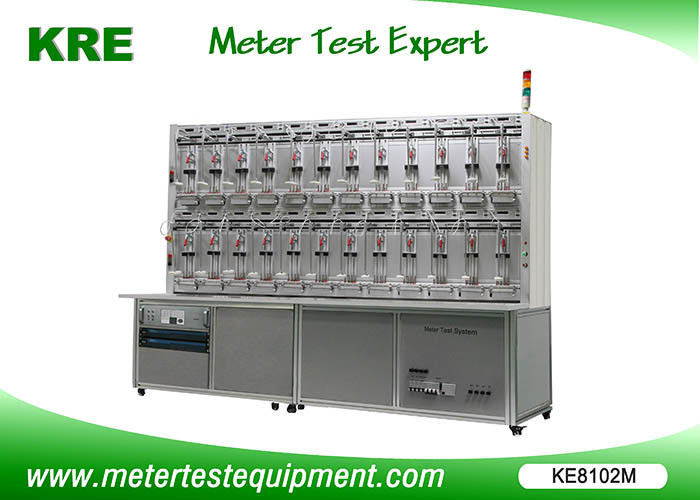

Class 0.05 Energy Meter Calibration Equipment Multiple Current Channels

Class 0.05 Energy Meter Calibration Equipment  Multiple Current Channels
Class 0.05 Energy Meter Calibration Equipment  Multiple Current Channels

Large Image :  Class 0.05 Energy Meter Calibration Equipment Multiple Current Channels

Product Details:

Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE8102

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Product Name: Meter Test Equipment Accuracy: 0.05
Usage: Energy Meter Calibration Phase Number: Three
Warranty: 12 Months Output Power: 500/1000VA
High Light:

energy meter testing equipment

,

calibration test bench



KE8102 single phase energy meter calibration equipment



KE8102 has multiple switchable channels for current output, used for testing 2 or 3 elements single phase mechanical and electric meter, Number of meter position : 3-64



Features:



  1. Aluminum alloy structure, light but strong and reliable, flexible choices
  2. Perfect alarming protective function, auto protection ofthe short circuit of voltage, the opencircuit of current, and overload.
  3. Full automatic, semi automatic and manual operation mode for chioces
  4. Supporting bar code input, which increase the efficiencyof input
  5. Simultaneous test of the energy meters with same specification, different constant and different class.
  6. Auto mark locking increases the efficiency of test
  7. Forward and reverse active energy / forward and reversereactive energy error test
  8. Creeping and starting test
  9. Standard deviation, 24 hour variation test
  10. Influencing quantity test of voltage, frequency, harmonic
  11. Energy constant verification
  12. Powerful computer management system, easy anduser-friendly
  13. Perfect database management makes the storage, searching,and viewing of the data possible, and the data can be converted and exported inother forms
  14. The test of open circuit for Neutral voltage (optional)
  15. Adopt multi-serial port system, realizing the parallelcommunication of computer andthe tested meters (optional)


Main Specification:



Number of meter position  24

Accuracy  ±0.05%



Voltage output

Output range (P-N) 24V - 300V

Output power of voltage 500VA

Resolution Better than ± 0.01%

Stability Better than ± 0.02% / 150s

Load regulation rate Better than ± 0.01%

Distortion factor Better than ± 0.3% (linear resistance load)

Harmonics output 2nd -21st free programmable



Current output

Output range 1mA - 120A

Output power of current 1000VA

Resolution Better than ± 0.01%

Stability Better than ± 0.02% / 150s

Load regulation rate Better than ± 0.01%

Distortion factor Better than ± 0.3% (linear resistance load)

Harmonics output 2nd -21st free programmable



Phase output

Output range 0 -- 360°

Resolution ± 0.01°



Frequency

Output range 45Hz - 65Hz

Resolution ± 0.01Hz



Operation condition

Power supply 220V±10%,50/60Hz±2Hz

Temperature -10°C -- +40°C

Humidity 35% -- 85%RH




Wiring diagram





Class 0.05 Energy Meter Calibration Equipment  Multiple Current Channels 0



Production area



Class 0.05 Energy Meter Calibration Equipment  Multiple Current Channels 1
