Modular Design Portable Energy Meter , Electrical Test Equipment Max 100VA

Modular Design Portable Energy Meter , Electrical Test Equipment Max 100VA
Modular Design Portable Energy Meter , Electrical Test Equipment Max 100VA

Large Image :  Modular Design Portable Energy Meter , Electrical Test Equipment Max 100VA

Product Details:

Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE8902

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Product Name: Portable Meter Test Equipment Material: Aluminium Alloy
Usage: Energy Meter Calibration Output Power: Max. 100VA
Stability: Better Than ± 0.03% / 150s Phase: Three
High Light:

electric meter testing equipment

,

3 phase testing equipment

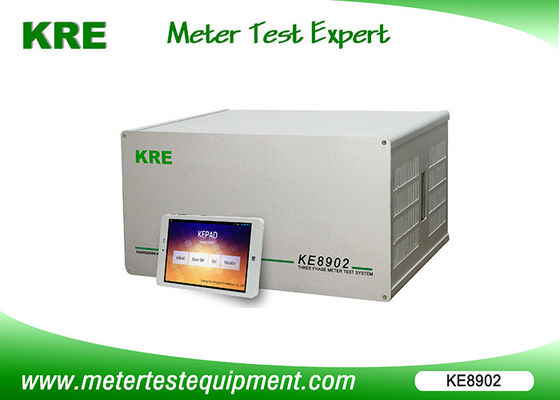

KE8902 Portable Three Phase Meter Test Equipment



KE8902 adopts standard power source technique, which can generate stable and quick test signal. It is applicable to meter factory, power company and lab.



Highlights:

  1. High accuracy 0.05%
  2. Built-in switching power supply,compact size
  3. Standard power source technique, quick and accurate output
  4. High power output, suitable for different loads
  5. Wide output range, the voltage output could be 3 x 300V(P-N) and the current output could be 3 x 120A
  6. 2nd - 21 st harmonic could be generated and the amplitude and the phase could be freely set
  7. Wireless communication, can realize remote control
  8. Support different remote controls, such as PC and tablet
  9. Built-in protection ways, which can auto-protect short circuit of voltage, open circuit of current and overload
  10. Two channel pulse input could test active error and reactive error of one meter simultaneously
  11. Modular design, each phase's source is independent​


Technical index:





  KE8902-20 KE8902-120
Accuracy 0.1
Voltage output
Output voltage (P-N) 3 x (30V – 265V)
Output power of voltage Max. 3 x 100VA
Resolution 5mV
Stability Better than ± 0.01% (50V – 265V)
Load regulation rate Better than ± 0.03% / 150 s
Distortion factor Better than ± 0.2% (linear resistance load)
Harmonics output 2nd – 21st free programmable
Current output
Output current 3 x (1mA - 20A) 3 x (1mA - 120A)
Output power of current Max. 3 x 30VA Max. 3 x 150VA
Resolution 0.5mA
Stability Better than ± 0.01% (0.1A – 100A)
Load regulation rate Better than ± 0.03% / 150 s
Distortion factor Better than ± 0.2% (linear resistance load)
Harmonics output 2nd – 21st free programmable
Phase output
Output range 0 -- 360°
Resolution ± 0.01°
Frequency output
Output range 45Hz - 65Hz
Resolution ±0.001Hz
Pulse input
Number of input channels 2
Input frequency Max. 100kHz
Operation conditions
Power supply 220V±10% 50/60Hz±2Hz
Temperature -10°C -- +40°C
Humidity 35% -- 85%RH
Other
Demission (H x W x D) 425mm x 364mm x 312mm
Weight 30 kg 35 kg



Modular Design Portable Energy Meter , Electrical Test Equipment Max 100VA 0
