Accuracy 0.02 Electrical Isolation Transformer , High Frequency Isolation Transformer

Name: Accuracy 0.02 Electrical Isolation Transformer , High Frequency Isolation Transformer
Brand: KRE
SKU: KE6202
Price: 1 USD
Availability: InStock
Rating: 5 (102 reviews)

Large Image : Accuracy 0.02 Electrical Isolation Transformer , High Frequency Isolation Transformer

Product Details:

Place of Origin:	China
Brand Name:	KRE
Certification:	ISO9000
Model Number:	KE6202

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	Plywood case
Delivery Time:	30 days
Payment Terms:	Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability:	50 pieces per month

Contact Now

Detailed Product Description

Product Name:	Multi-secondaries Voltage Transformer	Ratio:	1:1
Accuracy:	± 0.02%	Usage:	Voltage Isolation
Frequency:	45-65Hz	Power Output:	15 VA Per Winding
High Light:	high frequency isolation transformer , electrical voltage transformer , accuracy 0.02 multi secondary voltage transformer

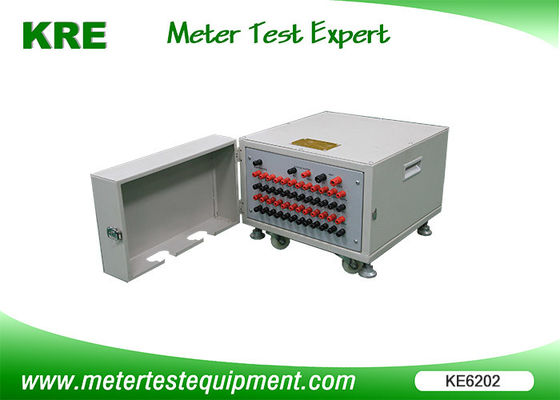

KE6202 Multi-secondary voltage transformer (MSVT)

KE6202 is a voltage transformer that mainly used to test I-P close link energy meter. It is usually used in meter test bench to realize the calibration of meter.

Main features:

Multiple secondary windings
Wide voltage range from 200V to 300V
It has wheels on the bottom, which makes it easy to move
Compact size, taking little space
High accuracy between secondaries

Technical Specifications:

Voltage range 200V – 300V

Number of secondary winding 1 -- 100

Ratio 1:1

Frequency range 45Hz – 65Hz

Power output ( each winding) 15VA

Ratio error of primary to secondary ± 0.25%

Ratio error of between secondaries ± 0.02%

Phase error of between secondaries ± 0.02º

Accuracy 0.02 Electrical Isolation Transformer , High Frequency Isolation Transformer 0
