Computer Management Electrical Lab Testing Equipment , 3 Phase Testing Equipment

Computer Management Electrical Lab Testing Equipment , 3 Phase Testing Equipment
Computer Management Electrical Lab Testing Equipment , 3 Phase Testing Equipment

Large Image :  Computer Management Electrical Lab Testing Equipment , 3 Phase Testing Equipment

Product Details:

Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE8300F

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Phase: Three Frequency: 45 - 65Hz
Usage: Energy Meter Calibration, Lab Research Current Range: 1mA - 120A
Warranty: 12 Months Accuracy: 0.01
Structure Type: Separated Type
High Light:

energy meter calibration equipment

,

energy meter test bench

Three Phase Energy Meter Testing Equipment high accuracy 0.01 IEC standard

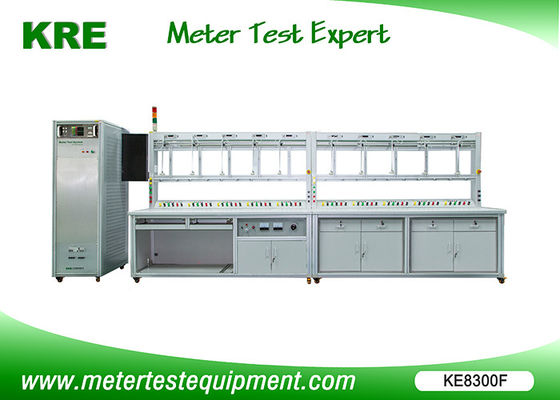

KE8300F Three Phase Energy Meter Testing Equipment



Accuracy : 0.01 , Used for the test of standard meter and mounted meter with a accuracy class below 0.05, Number of meter position : 3 - 12





Features:



· High accuracy: 0.01%

· Integrated / separated aluminum alloy structure, light and reliable, flexible choices

· Meter positions can be chosen from 3 - 12

· Auto protection of short circuit of voltage, open circuit of current, and overload.

· Full automatic, semi automatic and manual operation available

· Supporting bar code input, which increase the efficiency of input

· Simultaneous test of the meters with same specification, different constants and different classes.

· Forward and reverse active energy / forward and reverse reactive energy error test

· Creeping and starting test

· Standard deviation, 24 hour variation test

· Timing error test

· Influencing quantity test of voltage, frequency, harmonic

· Calibration and verification of constant

· Register indicating value, register combination error test

· Powerful computer management system, easy and user-friendly

· Perfect database management makes the storage, searching, and viewing of the data possible, and the data can be converted and exported in other forms







Main Specification:





KE8300F

Number of meter position

3/6/10

Accuracy

±0.01%

Voltage output

Output range (P-N)

3 x (24V - 300V)

Output power of voltage

3 x 200VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Current output

Output range

3 x (1mA - 120A)

Output power of current

3 x 300VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Phase output

Output range

0 -- 360°

Resolution

± 0.01°

Frequency

Output range

45Hz - 65Hz

Resolution

± 0.01Hz

Operation condition

Power supply

220V±10%,50/60Hz±2Hz

Temperature

-10°C -- +40°C

Humidity

35% -- 85%RH
