Single Phase Isolation Current Transformer RS485 Port Auto Overload Protection

Single Phase Isolation Current Transformer RS485 Port Auto Overload Protection
Single Phase Isolation Current Transformer RS485 Port Auto Overload Protection

Large Image :  Single Phase Isolation Current Transformer RS485 Port Auto Overload Protection

Product Details:
Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE6321
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Phase: Single Phase Primary Current Range: 10mA-120A
Frequency: 45Hz - 65Hz Ratio: 1:1
Usage: Isolate Current Output Power: 60VA
High Light:

safety isolating transformer

,

ac power isolation transformer

,

RS485 Port Isolation current transformer

Single Phase Isolation Current Transformer for I-P close link meter testing



KE6321 Isolation current transformer

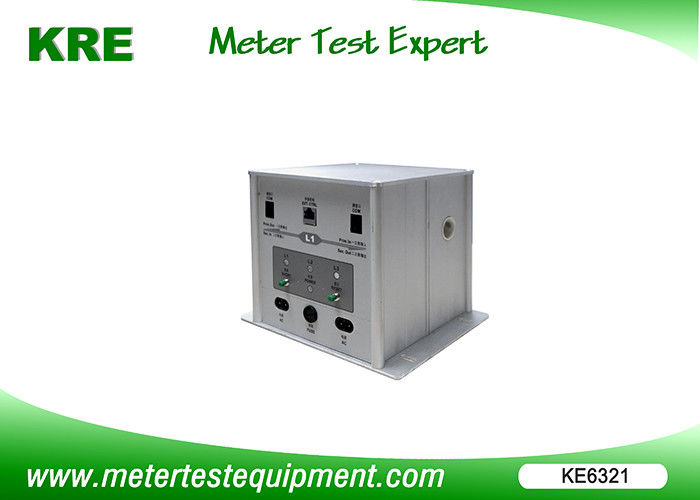

KE6321 Isolation current transformer (ICT) is used for the test of I-P close link meter

Features:

  1. By active electronic error compensation, it can achieve high accuracy through.
  2. Install directly through hole
  3. Wide current range on primary side and secondaries side: 10mA --120A
  4. Output power: Max 60VA each phase
  5. auto protection, when secondary measure open circuit or overload happens, ICT will protect automatically and send out alarm signal
  6. able to realize local bypass through button
  7. With RS485 port, can realize remote control and status monitoring



Main Specifications:

  KE6321
Accuracy 0.02
Phase number 1
Nominal frequency 50 Hz (45 … 55 Hz) or 60 Hz (54 … 66 Hz)
Primary current range 10mA-120A
Ratio 1:1
Secondary current range 10mA-120A
Ratio error(typical) ±0.01%
Angle error(typical) ±0.05min
Output power per phase (max.) 60VA
Auxiliary power supply Ac185V- 265V / 45Hz - 65Hz
