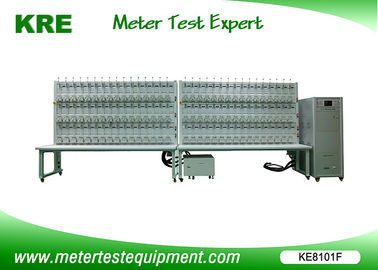

96 Positions Meter Test Equipment For 1ph Energy Meter Class 0.05 120 A

96 Positions Meter Test Equipment For 1ph Energy Meter Class 0.05 120 A
96 Positions Meter Test Equipment For 1ph Energy Meter Class 0.05 120 A

Large Image :  96 Positions Meter Test Equipment For 1ph Energy Meter Class 0.05 120 A

Product Details:
Place of Origin: China
Brand Name: KRE
Certification: ISO9000
Model Number: KE8101
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability: 50 pieces per month
Detailed Product Description
Product Name: 1 Phase Meter Test Equipment Material: Aluminium Alloy
Phase Number: Single Warranty: 12 Months
Accuracy: 0.05 Voltage Output: 24V - 300V
High Light:

power meter test equipment

,

meter test bench



KE8101 single phase meter test equipment

is used for the test of various single phase electric and mechanical meter, multi-function meter, PLC meter, multi-rate meter and prepayment meter.


Main functions:

  1. Base error test
  2. Forward / reverse active energy error test
  3. Forward / reverse reactive energy error test
  4. Creeping test (no load test)
  5. Starting test
  6. Verification of constant
  7. Dial test (energy accumulation test)
  8. Error repeatability test
  9. Standard deviation test
  10. 24-hour variation test
  11. Influencing shelf-heating test
  12. Influencing quantity test of voltage, frequency, harmonic
  13. Voltage dips and short interruptions test
  14. Register indicating value, register combination error test
  15. Timing error test (optional)
  16. Missing neutral voltage test (optional)


Technical data:







KE8101-96

Number of meter position

96

Accuracy

±0.05%

Voltage output

Output range (P-N)

24V - 300V

Output power of voltage

2000VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Current output

Output range

1mA - 120A

Output power of current

3000VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Phase output

Output range

0 -- 360°

Resolution

± 0.01°

Frequency

Output range

45Hz - 65Hz

Resolution

± 0.01Hz

Operation condition

Power supply

220V±10%,50/60Hz±2Hz

Temperature

-10°C -- +40°C

Humidity

35% -- 85%RH







96 Positions Meter Test Equipment For 1ph Energy Meter Class 0.05 120 A 0
